# 浮动布局-nav
<style>
.parent {
border: 1px solid green;
margin-left: auto;
margin-right: auto;
background: #ddd;
min-width: 375px;
}
.child {
height: 36px;
}
.child:nth-child(1) {
width: 100px;
background-color: #333;
color: white;
text-align: center;
line-height: 36px;
}
.child:nth-child(2) {
}
.clearfix::after {
content: '';
display: block;
clear: both;
}
.nav {
line-height: 24px;
padding: 8px 0;
}
.navItem {
margin-left: 10px;
}
</style>
<div class="parent clearfix">
<div class="child" style="float:left;">logo</div>
<div class="child" style="float:right;">
<div class="nav">
<div style="float:left;" class="navItem">导航1</div>
<div style="float:left;" class="navItem">导航2</div>
<div style="float:left;" class="navItem">导航3</div>
<div style="float:left;" class="navItem">导航4</div>
<div style="float:left;" class="navItem">导航5</div>
</div>
</div>
</div>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
浮动布局要注意清除浮动带来的副作用，推荐用伪元素来清除浮动:
.clearfix::after {
content: '';
display: block;
clear: both;
}
1
2
3
4
5
2
3
4
5
只要在浮动元素的父元素添加该样式即可。

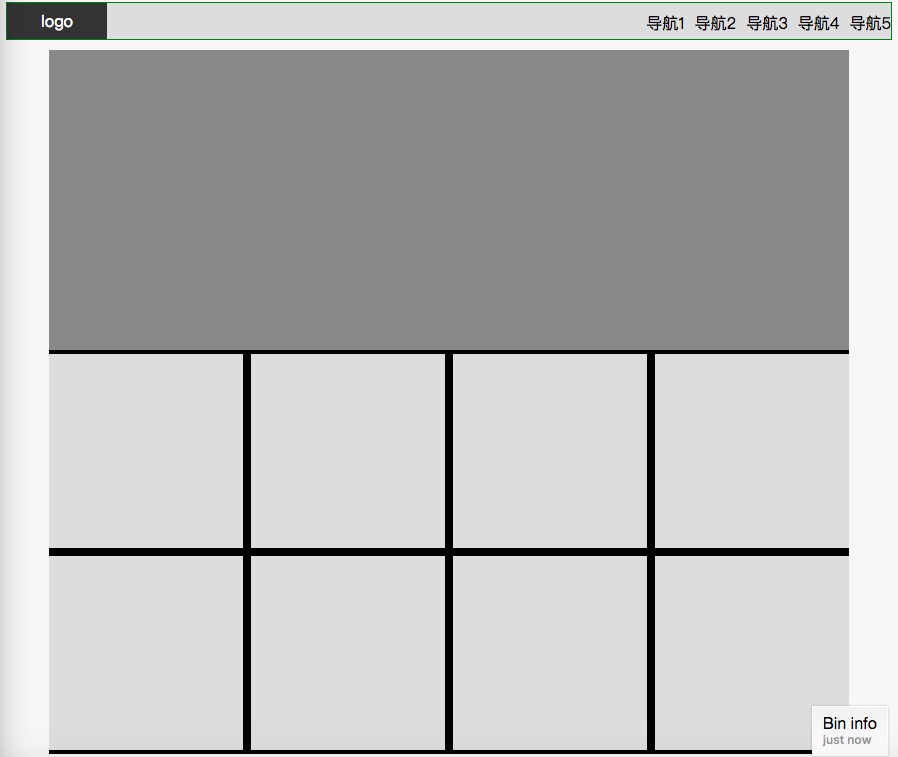

# 浮动布局-平均布局
<style>
.parent {
border: 1px solid green;
margin-left: auto;
margin-right: auto;
background: #ddd;
min-width: 375px;
}
.child {
height: 36px;
}
.child:nth-child(1) {
width: 100px;
background-color: #333;
color: white;
text-align: center;
line-height: 36px;
}
.child:nth-child(2) {
}
.clearfix::after {
content: '';
display: block;
clear: both;
}
.nav {
line-height: 24px;
padding: 8px 0;
}
.navItem {
margin-left: 10px;
}
.banner {
width: 800px;
height: 300px;
margin-top: 10px;
margin-right: auto;
margin-left: auto;
background: #888;
}
.pictures {
width: 800px;
margin: 0 auto;
background: black;
}
.wrapper {
margin-left: -4px;
margin-right: -4px;
}
.picture {
width: 194px;
height: 194px;
background: #ddd;
margin: 4px;
float: left;
}
</style>
<div class="parent clearfix">
<div class="child" style="float:left;">logo</div>
<div class="child" style="float:right;">
<div class="nav clearfix">
<div style="float:left;" class="navItem">导航1</div>
<div style="float:left;" class="navItem">导航2</div>
<div style="float:left;" class="navItem">导航3</div>
<div style="float:left;" class="navItem">导航4</div>
<div style="float:left;" class="navItem">导航5</div>
</div>
</div>
</div>
<div class="banner"></div>
<div class="pictures">
<div class="wrapper clearfix">
<div class="picture"></div>
<div class="picture"></div>
<div class="picture"></div>
<div class="picture"></div>
<div class="picture"></div>
<div class="picture"></div>
<div class="picture"></div>
<div class="picture"></div>
</div>
</div>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
提示
这里要注意wrapper的作用，用负 margin 来抵消margin:4px，使得靠近边缘的方块能紧贴着边缘而没有空隙。

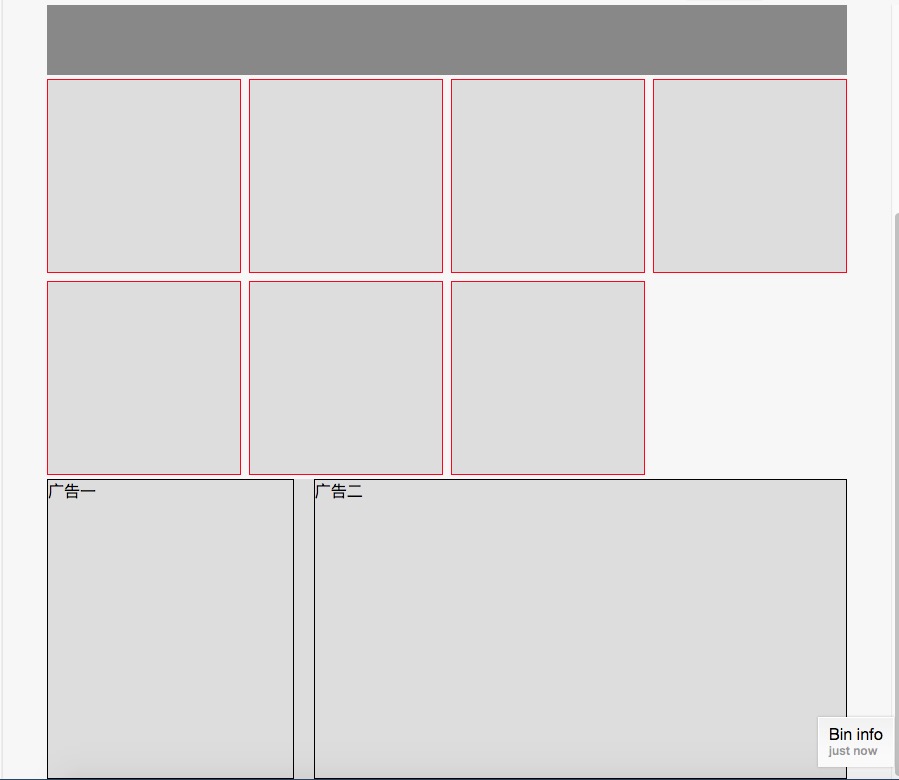

# flex-平均布局
<style>
*{margin:0px;padding:0px;box-sizing:border-box;}
.parent{
border:1px solid green;
margin-left:auto;
margin-right:auto;
background: #ddd;
min-width:375px;
}
.child{
height:36px;
}
.child:nth-child(1){
width:100px;
background-color:#333;
color:white;
text-align:center;
line-height:36px;
}
.child:nth-child(2){
}
.clearfix::after{
content:'';
display:block;
clear:both;
}
.nav{
line-height:24px;
padding:8px 0;
}
.navItem{
margin-left:10px;
}
.banner{
width:800px;
height:300px;
margin-top:10px;
margin-right:auto;
margin-left:auto;
background:#888;
}
.pictures{
width:800px;
margin: 0 auto;
}
.wrapper{
display:flex;
flex-wrap:wrap;
margin:0 -4px;
}
.picture{
width:calc(25% - 8px);
height:194px;
background:#ddd;
margin-top:4px;
margin-bottom:4px;
border:1px solid red;
margin:4px;
}
.art{
height:300px;
background:#ddd;
width:800px;
margin:0 auto;
}
.aside{
float:left;
border:1px solid black;
width:33.333333%;
width:calc(33.33333% - 20px);
margin-right:20px;
height:300px;
}
.main{
float:left;
border:1px solid black;
width:66.66666%;
height:300px;
}
<div class="parent clearfix">
<div class="child" style="float:left;">logo</div>
<div class="child" style="float:right;">
<div class="nav clearfix">
<div style="float:left;" class="navItem">导航1</div>
<div style="float:left;" class="navItem">导航2</div>
<div style="float:left;" class="navItem">导航3</div>
<div style="float:left;" class="navItem">导航4</div>
<div style="float:left;" class="navItem">导航5</div>
</div>
</div>
</div>
<div class="banner"></div>
<div class="pictures">
<div class="wrapper">
<div class="picture"></div>
<div class="picture"></div>
<div class="picture"></div>
<div class="picture"></div>
<div class="picture"></div>
<div class="picture"></div>
<div class="picture"></div>
</div>
</div>
<div class="art clearfix">
<div class="aside">广告一</div>
<div class="main">广告二</div>
</div>
</style>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
提示
该方式布局，即使picture元素的个数不是 4 的倍数，也能按原先的方式排列下去
# 手机端布局
加入了媒体查询，同时宽度用%作为单位：在线编辑 (opens new window)
<style>
*{box-sizing: border-box;}
*{margin: 0;padding:0;}
.parent{
margin-left: auto;
margin-right: auto;
background: #ddd;
}
.child{
}
.child:nth-child(1){
width: 100px;
background-color: #333;
color: white;
text-align: center;
height: 36px;
line-height: 36px;
float:left;
}
.child:nth-child(2){
float:right;
}
.parent .nav2{
display: none;
}
@media (max-width: 420px){
.parent .nav2{
display: block;
}
.parent .nav{
display: none;
}
}
.clearfix::after{
content: '';
display: block;
clear: both;
}
.clearfix{
zoom: 1;
} /*IE 6*/
.content{
border: 1px solid black;
margin-right: 10px;
}
.nav{
line-height: 24px;
padding: 6px 0;
}
.navItem{
margin-left: 20px;
float:left;
}
.banner{
width: 800px;
height: 300px;
background: #888;
margin-left: auto;
margin-right: auto;
margin-top: 10px;
background: transparent url(https://goss1.vcg.com/creative/vcg/800/version23/VCG41160250211.jpg) no-repeat center;
background-size: cover;
}
@media (max-width: 420px){
.banner{width: auto;}
}
.pictures{
width: 800px;
margin: 0 auto; /*1*/
overflow: hidden;
}
@media (max-width: 420px){
.pictures{width: auto;}
}
.pictures > .xxx{
display: flex;
flex-wrap: wrap;
margin: 0 -4px;
}
.picture{
width: calc(25% - 8px);
height: 194px;
background: #ddd;
margin: 4px;
}
@media (max-width: 420px){
.picture{
width: calc(50% - 8px);
}
}
.art{
background: #ddd;
width: 800px;
margin: 0 auto;
display: flex;
justify-content: space-between;
}
@media (max-width: 420px){
.art{
width: auto;
flex-direction: column;
}
}
.art>.sider{
border: 1px solid black;
width: calc(33.333333% - 20px);
height: 300px;
}
@media (max-width: 420px){
.art>.sider{
width: auto;
height: auto;
}
}
.art>.main{
border: 1px solid black;
width: 66.6666666%;
height: 300px;
}
@media (max-width: 420px){
.art>.main{
width: auto;
height: auto;
}
}
<div class="parent clearfix">
<div class="child">logo</div>
<div class="child">
<div class="nav clearfix">
<div class="navItem">导航1</div>
<div class="navItem">导航2</div>
<div class="navItem">导航3</div>
<div class="navItem">导航4</div>
<div class="navItem">导航5</div>
</div>
<div class="nav2">三</div>
</div>
</div>
<div class="banner"></div>
<div class="pictures">
<div class="xxx">
<div class="picture"></div>
<div class="picture"></div>
<div class="picture"></div>
<div class="picture"></div>
<div class="picture"></div>
<div class="picture"></div>
<div class="picture"></div>
</div>
</div>
<div class="art">
<div class="sider">
广告1
</div>
<div class="main">
广告2
</div>
</div>
</style>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
提示
为了防止图片在页面放大的时候变形，把图片作为背景来呈现，而不是用 img 标签
BFC →
